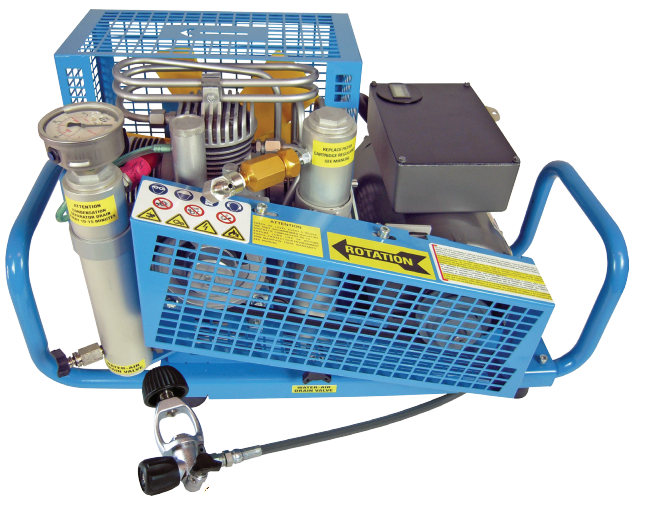

MAX-AIR 35 Electric (4.2 scfm** 4800 psi)

MAX-AIR 35 Electric (4.2 scfm** 4800 psi)

Regular price $4,250.00 USD
Regular price Sale price $4,250.00 USD
Sale Sold out

Low stock: 1 left

MORE INFO HERE: MaxAir 35 GH - Max-Air

A compact, personal portable, high pressure, breathing air supply.
The Max-Air 35 Standard is the most reliable, compact and portable compressor available today. Ideal for location dives or pleasure boats where portability, space and weight are
considerations. Economical to run and easy to maintain, the Max-Air 35 will give years of
high quality breathing air in locations where dive centers or air stations are not available.

Standard features:

• 4.2 scfm** – Fills an 80cft tank in approx 22 min*
• Truly portable at only 85 lbs (38 kg)
• Dimensions: Length 28” x Depth 13” x Height 15”
• Mounted on a durable powder coated steel frame with convenient carry handles
• Oil/water separating chambers (manual drains)
• Tri-chem breathing air purification system with activated carbon/molecular sieve 13X /hopcalite
• Disposable purification cartridge is convenient and easy to replace
• Pressure maintaining valve for optimum air processing
• Final pressure relief valve
• Digital hour meter
• Intake filter
• Oil filled pressure gauge 0~5800psi/400bar (SCUBA yoke, SCBA, DIN300 or Paintball)
• 12 oz. MaxLube 501 synthetic compressor oil
• Spare parts list and owners manual
• One year warranty

Specifications Pumping Group

Construction: Air cooled, four stage, four cylinder high pressure, interstage and final stage coolers
Max Pressure: 4800psig-330bar
Max R.P.M.: 2800
Lubrication: Splash lubrication with oil thrower pin
Oil Capacity: 12 oz.
Oil Type: MaxLube 501 synthetic compressor oil
Drive Motor Options: 5.5hp Honda® gasoline engine
AC electric motors in single or three phase
115v/230v/240v @50 or 60hz
(Plug not provided, consult your local electrical
code.)
Noise Level: 87 dB at 3 meters
*Time required to fill an 80 cu. ft. cylinder from 500 to 3000 psig
**Based on charging an 80 cu. ft. cylinder from 500 to 3000 psig
*** Specifications and prices subject to change without notice
